GENERATOR RUBRUKS HVM-PM1-110
Article: HVM-PM1-110
0 Р
Manufacturer:
RUBRUKS
• Power nom. s1, kW - 63
• Dimensions (DxL), mm - 386x259
• Weight, kg - 108
• Dimensions (DxL), mm - 386x259
• Weight, kg - 108
To share:
| Nominal speed, rpm | 1500 | 1800 | 2500 | 2800 |
| Rated power s1, kV | 52 | 63 | 86 | 95 |
| cos phi | 0,99 | 0,99 | 0,99 | 0,99 |
| Efficiency, % | 93,1 | 94 | 95,2 | 95,5 |
| Frequency Hz | 125 | 150 | 208,3 | 233,3 |
| Rated current, A | 185 | 185 | 178 | 175 |
| Overall dimensions (DxL), mm | 386x259 | |||
| Weight, kg | 108 | |||
| Type of cooling system | liquid | |||
Возможно изготовление искробезопасного и взрывозащищенного исполнения
Manufacturer: RUBRUKS

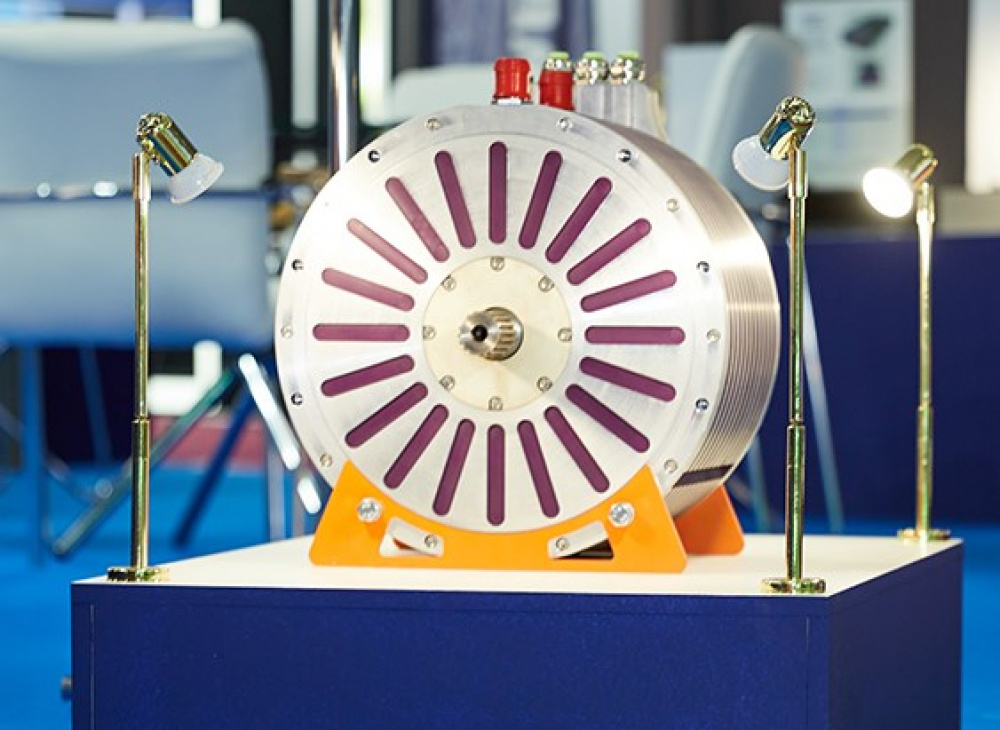

The RUBRUKS HVM-PM1-110 alternator is a permanent magnet synchronous electric machine. The generator is designed to generate electrical energy to supply on-board consumers.
Suitable for hybrid vehicles, special vehicles and agricultural machinery.
Available in intrinsically safe and explosion-proof versions
You can place an order for GENERATOR RUBRUKS HVM-PM1-110 at Рубрукс by
sending an application by mail
, as well as by phone or at the
company's office
.
