Electric motor RUBRUKS MVM-PM1-35
Article: MVM-PM1-35
0 Р
Manufacturer:
RUBRUKS
• Nominal voltage, V - 360
• Peak power s2 30 s, kW - 70
• Peak moment s2 30 s, Nm - 475
• Dimensions (DxL), mm - 300x265
• Weight, kg - 75
• Peak power s2 30 s, kW - 70
• Peak moment s2 30 s, Nm - 475
• Dimensions (DxL), mm - 300x265
• Weight, kg - 75
To share:
| Peak power s2 30 sec, kW | 70 |
| Rated power s1, kW | 35 |
| Rated voltage, V | 360 |
| Maximum speed, rpm | 5000 |
| Peak torque s2 30 sec | 475 |
| Nominal torque s1, Nm | 210 |
| Efficiency, % | 92 |
| Maximum current, A | 220 |
| Overall dimensions (DxL), mm | 300x265 |
| Weight, kg | 75 |
| Type of cooling system | liquid |
Manufacturer: RUBRUKS

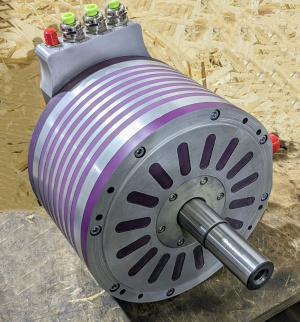

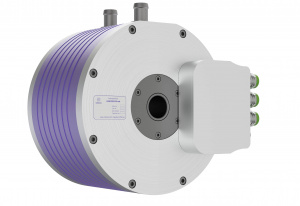

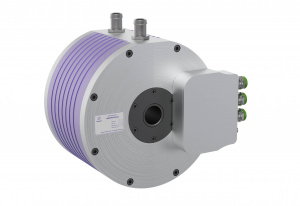

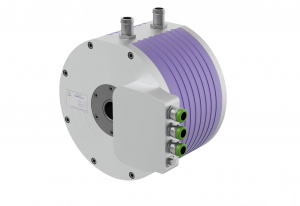

AC electric motor RUBRUKS MVM-PM1-35 is a reversible synchronous electric machine with permanent magnets. The electric motor is designed to operate at a voltage of 360 V, providing a maximum torque of 475 Nm.
Suitable for electric vehicles, hybrid vehicles and agricultural machinery.
You can place an order for Electric motor RUBRUKS MVM-PM1-35 at Рубрукс by
sending an application by mail
, as well as by phone or at the
company's office
.
