Onboard charger RUBRUKS RBC2-360-22
Article: RBC2-360-22
0 Р
Manufacturer:
RUBRUKS
• Maximum power, kW - 22
• Output voltage, V - 210…420
• Output voltage, V - 210…420
To share:
| Maximum power, kW | 22 |
| Rated voltage, V | 360 |
| Input voltage, V | 210…250 |
| Output voltage, V | 410…750 |
| Maximum input current, A | 32 |
| Maximum output current, A | 60 |
| Overall dimensions, mm | 485x356x91 |
| Weight, kg | 28 |
| Interface | CAN 2.0B |
| Type of cooling system | liquid |
Manufacturer: RUBRUKS

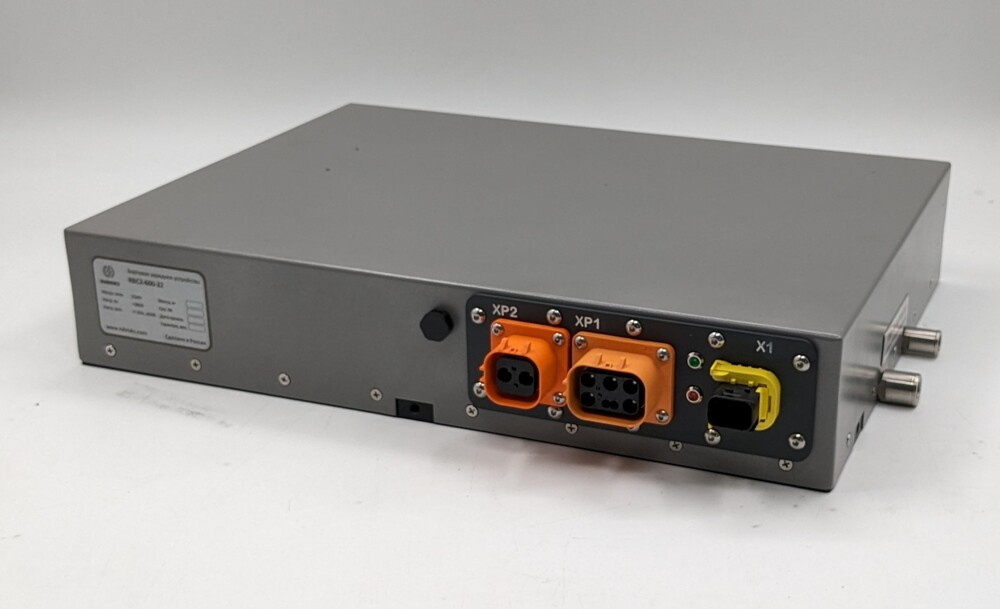

On-board charger RBC2-360-22 is designed to charge vehicle batteries from 1- and 3-phase household mains current.
The on-board charger has the ability to interact with the charging terminals of the IEC 62196, IEC 62196-2 and CCS Type 2 standards. This allows you to charge the vehicle both from a household electrical outlet using a special charging cable, and from a charging station.
Suitable for electric vehicles, hybrid vehicles and agricultural machinery.
Features:
- CAN bus control
- interaction with charging terminal (J1772)
- setting output voltage/current via CAN bus
- work in CC-CV mode
- function of working with a resistive load (warm-up mode)
- protection systems
