Traction drive unit RUBRUKS STDU-600
Article: STDU-600
0 Р
Manufacturer:
RUBRUKS
• Nominal voltage, V - 600
To share:
|
Voltage HV rated, V |
600 |
|
Voltage LV rated, V |
24 |
|
Nominal phase current, A |
100 |
|
Maximum phase current, A |
200 |
|
Power of the built-in charger, kW |
6,6 |
|
Built-in DC-DC power, kW |
4 |
|

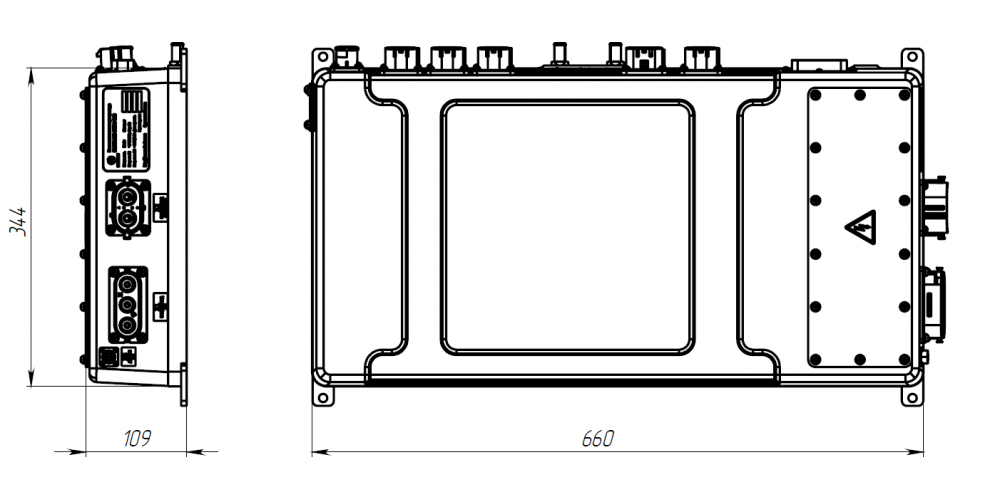

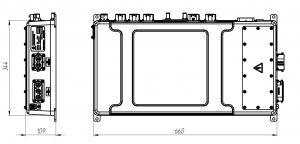

Overall dimensions (LxWxH), mm |
660х344х109 |
|
Weight, kg |
35 |
|
Interface |
CAN 2.0A/B |
|
Cooling system type |
liquid |
Manufacturer: RUBRUKS

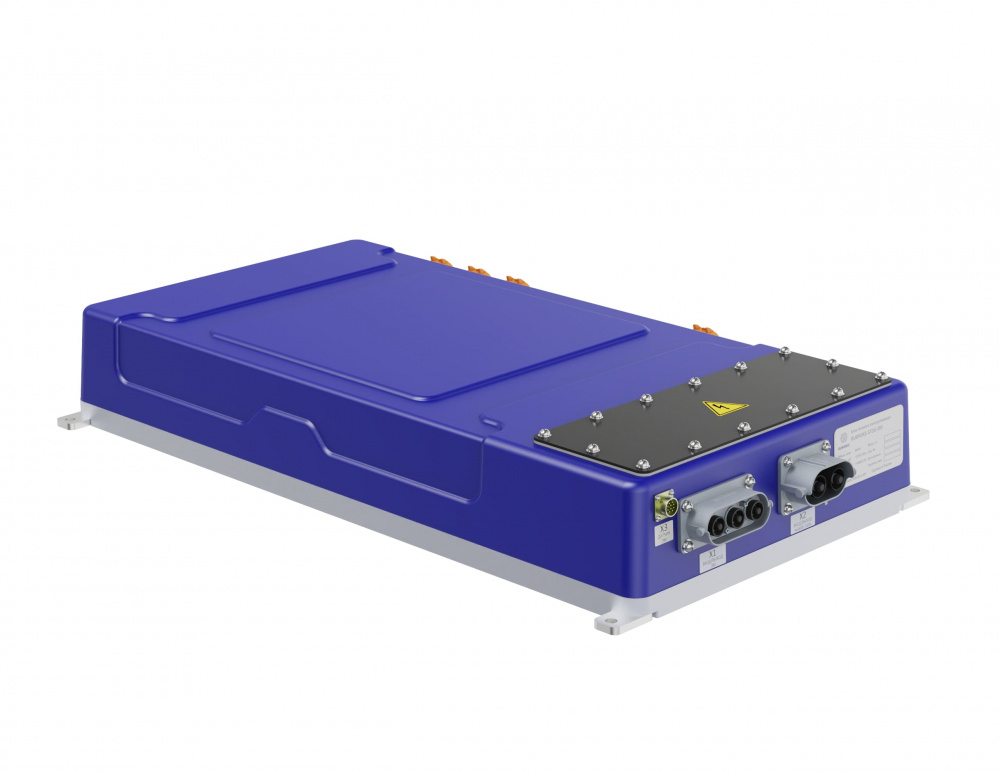

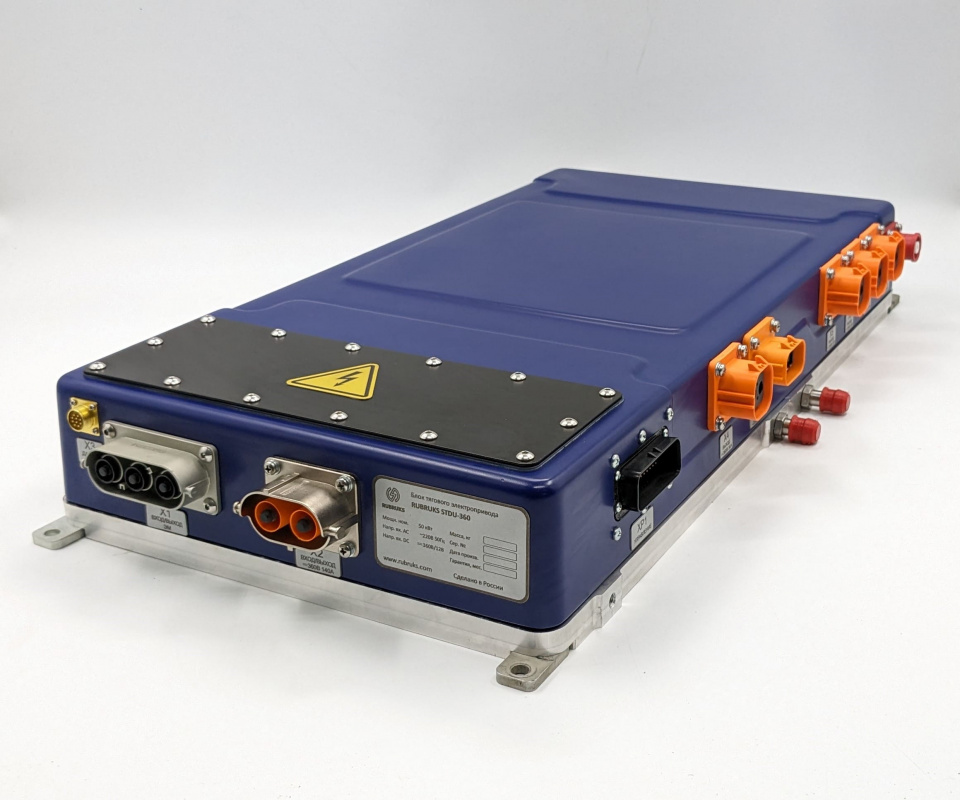

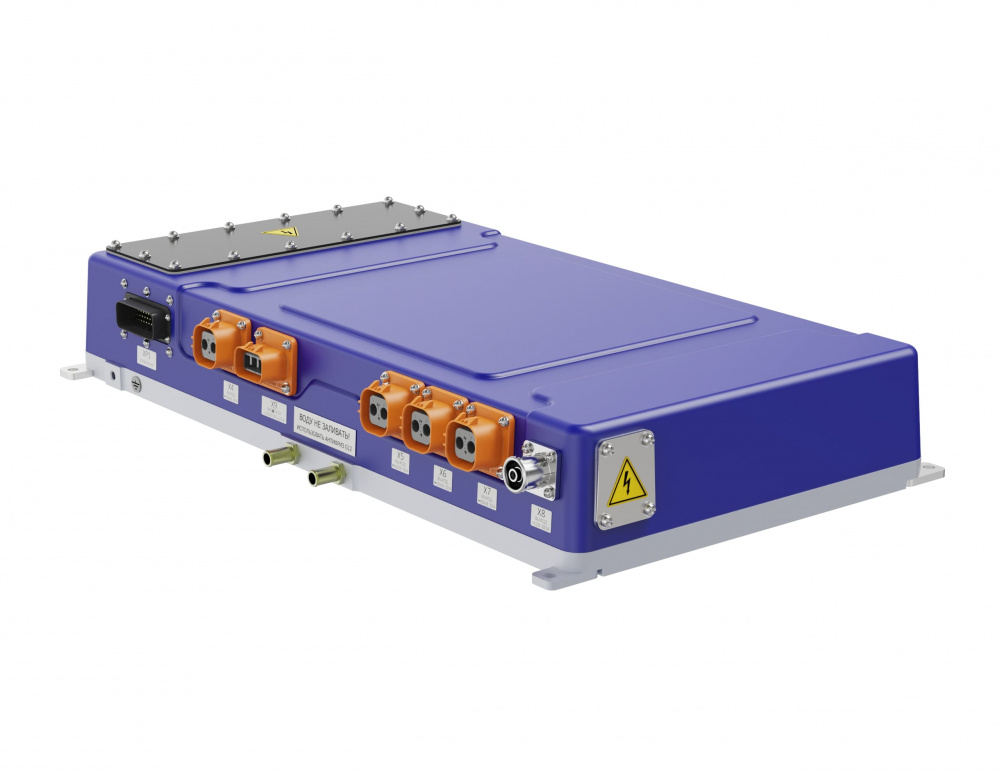

The RUBRUKS STDU-600 electric traction drive unit is designed for use as part of electric traction drive systems for electric and hybrid vehicles.
It is presented in the form of a single monoblock. Includes:
- traction inverter,
- on-board charger,
- DC-DC converter,
- main control unit,
- high-voltage switching unit.
The unified design of the block and the possibility of an optional choice of basic parameters make it possible to use it in systems of both passenger electric vehicles and medium-duty commercial electric vehicles, all-terrain passenger vehicles, water vehicles, etc.
You can place an order for Traction drive unit RUBRUKS STDU-600 at Рубрукс by
sending an application by mail
, as well as by phone or at the
company's office
.
