ELECTRIC MOTOR RUBRUKS MVM-PM1-60
Article: MVM-PM1-60
0 Р
Manufacturer:
RUBRUKS
• Nominal voltage, V - 360
• Peak power s2 30 s, kW - 113
• Peak moment s2 30 s, Nm - 296
• Dimensions (DxL), mm - 300x220
• Weight, kg - 63
• Peak power s2 30 s, kW - 113
• Peak moment s2 30 s, Nm - 296
• Dimensions (DxL), mm - 300x220
• Weight, kg - 63
To share:
| Peak power s2 30 sec, kW | 113 |
| Rated power s1, kW | 60 |
| Rated voltage, V | 360 |
| Maximum speed, rpm | 9000 |
| Peak torque s2 30 sec, Nm | 296 |
| Nominal torque s1, Nm | 130 |
| Efficiency, % | 96 |
| Maximum current, A | 350 |
| Overall dimensions (DxL), mm | 300x220 |
| Weight, kg | 63 |
| Type of cooling system | liquid |
Available in intrinsically safe and explosion-proof versions
Manufacturer: RUBRUKS

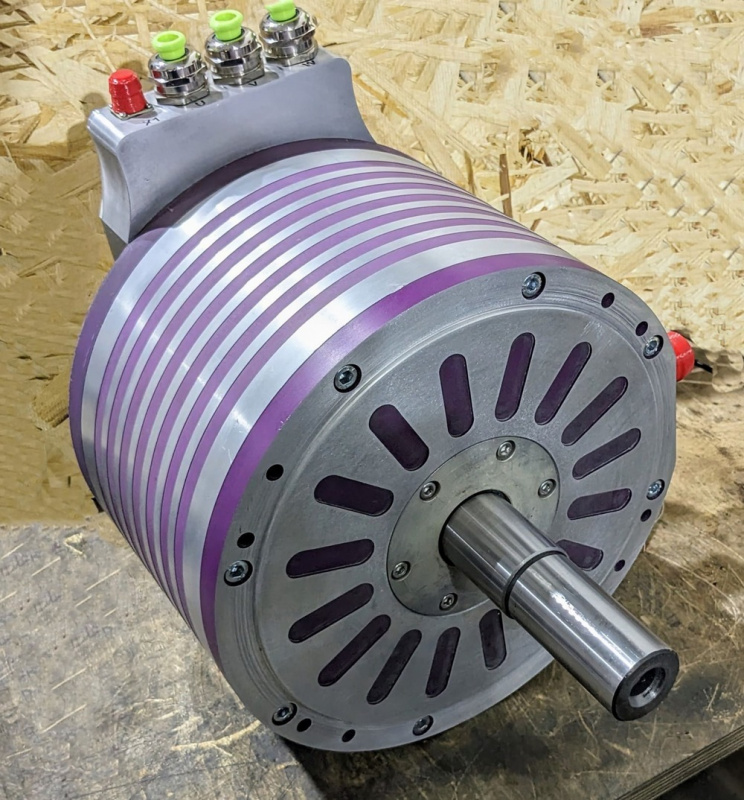

The RUBRUKS MVM-PM1-60 AC electric motor is a reversible synchronous electric machine with permanent magnets. The electric motor is designed to operate on a voltage of 360 V, providing a maximum torque of 296 Nm.
Suitable for electric vehicles, hybrid vehicles and agricultural machinery.
Available in intrinsically safe and explosion-proof versionsВозможно изготовление искробезопасного и взрывозащищенного исполнения
You can place an order for ELECTRIC MOTOR RUBRUKS MVM-PM1-60 at Рубрукс by
sending an application by mail
, as well as by phone or at the
company's office
.
